Overview & Wireless Performance

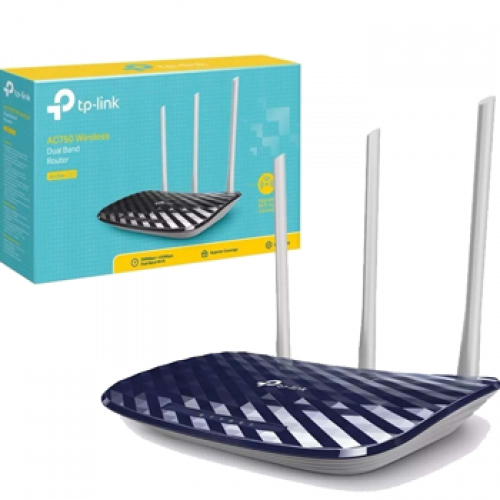

- Model: TP-Link Archer C20
- Wi-Fi Standard: Wi-Fi 5 (IEEE 802.11ac)
- Bands & Max Speeds:
- 5 GHz: up to 433 Mbps (802.11ac)
- 2.4 GHz: up to 300 Mbps (802.11n)
- Total: AC750 — combining both bands to deliver ≈733–750 Mbps total throughput

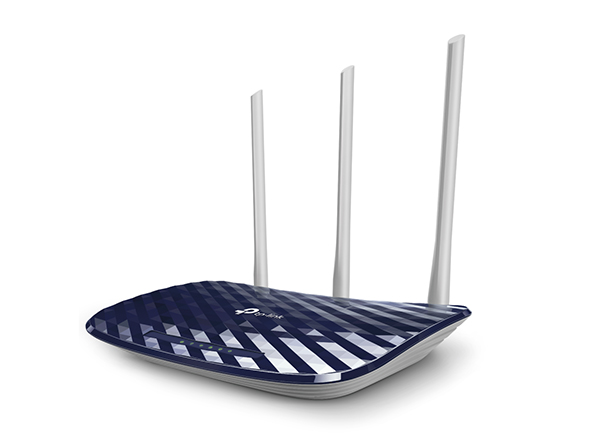

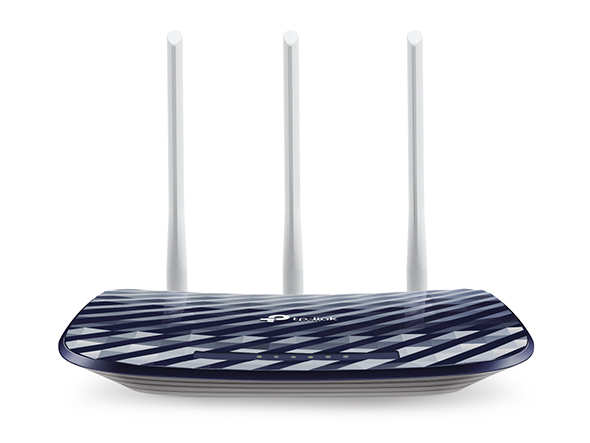

- Antennas: 3 fixed omnidirectional antennas provide enhanced coverage and reliable signal strength
Operating Modes & Features
- Working Modes:
- Router
- Access Point (AP)
- Range Extender
- Setup and Management:
- Configuration via intuitive web interface or TP-Link Tether app (iOS/Android)
- Security & Network Controls:
- Firewall: SPI
- Encryption: WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1X)
- Guest networks support — separate SSIDs for 2.4 GHz and 5 GHz
- Parental Controls: URL and time-based filtering
- Access Control: IP & MAC binding, block/allow rules
Hardware Specifications
- WAN Port: 1 × 10/100 Mbps
- LAN Ports: 4 × 10/100 Mbps RJ45 Buttons:
- WPS / Reset
- Wi-Fi On/Off
- Power On/Off
- Power Adapter: 9 V ⎓ 0.6 A (US/EU); some variants list 9 V ⎓ 0.85 A
- Dimensions: approx. 230 mm × 144 mm × 35 mm (9.1 in × 5.7 in × 1.4 in)
Software & Protocol Support
- Network Protocols:
- IPv4 and IPv6
- WAN connection types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP (plus “dual access” variations)
- Extra services: UPnP, NAT, DHCP, Dynamic DNS (DynDNS, NO-IP, Comex), IPTV support (IGMP Proxy/Snooping, VLAN tagging)
- QoS & Port Settings:
- QoS by device
- Virtual Server, Port Forwarding, Port Triggering, DMZ, DHCP reservation
- NAT forwarding, Application Layer Gateway, SPI Firewall
- Mesh Capability:
- TP-Link OneMesh / EasyMesh support (for seamless roaming across compatible devices)
- System Tools:
- Firmware upgrade, backup/restore configuration, system log, time settings (NTP), diagnostics, reboot, reset, admin password management
Additional Details (From User Manual)
- LED Indicators: Power, Wi-Fi (2.4 GHz & 5 GHz), Ethernet, Internet, USB (if applicable), WPS status
- USB Port: Some documentation suggests a USB port supporting storage, FTP, media or print services—but this may vary by hardware version or region
- Environmental Specs:
- Operating Temp: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temp: –40 °C to 70 °C (–40 °F to 158 °F)
- Operating Humidity: 10–90% non-condensing; storage: 5–90% non-condensing
- Package Contents (typically):
- Archer C20 router
- Power Adapter
- RJ-45 Ethernet cable
- Quick Installation Guide
At a Glance: Archer C20 AC750 Spec Table
| Feature | Details |
| Wireless | Dual-band AC750 (300 Mbps @2.4 GHz + 433 Mbps @5 GHz) |
| Antennas | 3 × fixed external omnidirectional |
| Ports | 1 × WAN (10/100), 4 × LAN (10/100), possible USB (variant-dependent) |
| Buttons | WPS/Reset, Wi-Fi On/Off, Power On/Off |
| Security | WEP, WPA, WPA2, Enterprise; SPI firewall; guest networks; parental and access controls |
| Modes | Router, Access Point, Range Extender |
| Software | Tether app; IPv4/IPv6; multiple WAN types; QoS; DDNS; UPnP; NAT; IPTV; mesh support |
| Tools | Web UI, system logs, backups, firmware updates, time sync, diagnostics |
| Physical | 230 × 144 × 35 mm (9.1 × 5.7 × 1.4 in); 9 V ⎓ 0.6 A power |
| Environment | 0–40 °C operating; 10–90% humidity |
| Includes | Router, power adapter, Ethernet cable, guide |
